Comes with standard equipment like stepper motors & micro-stepping drives, ball screws, LMGs, 1.5kw x 24000 rpm water-cooled spindle motor, which all-to-gather with its sturdy construction offers the vibration-free smooth movement of all axes while working.

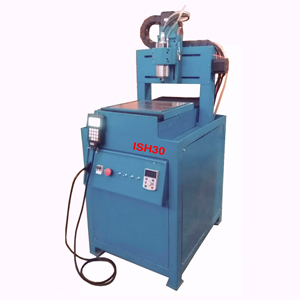

CNC Engraving - ISH30

2D and 3D Engraving

Capable of 2D & 3D Engraving on most of material: i.e., C.I., M.S., Carbon Steel, Aluminum, Copper, Brass as well as Wood, Plywood, MDF, Fiber, Acrylic, Nylon and other plastics.

CNC Controller

  • Full featured PC-based 32bit CNC Controller.
  • The controller enables to use EMC2 standard G-Codes / M-codes for 3D operations.
  • Allows direct import of DXF, BMP, JPG & HPGL files through LazyCam.
  • Visual G-code display.

Technical Specification

Table
Table overall size mm 380 x 450 (with water channel)
Nos. of T-slots / size / center distance mm 3 / 10 / 130
Table load capacity kg 40
Moving unit   LM Guideways and Ball Screws on all axes
Working Range
X- axis travel mm 250
Y- axis travel mm 300
Z- axis travel mm 100
Axes feed rate (depends on material) mm/min 1 ~ 1500
Rapid traverse m/min 2.5
Spindle speed rpm 24000
Max dist bet spindle nose & table mm 104
Max job height mm 100
Electricals
Axes motors   Stepper motors with micro stepping drives
Spindle motor   1.5 kw / 24000 rpm / 1 Ph AC
Coolant pump – Water cooled   0.15 HP / 1 Ph AC
Power supply   230V / 50Hz / 1Ph AC
Machine weight kg 180 (approx)

Standard Accessories

  • DSP Controller
  • Work Lamp
  • Water tank with Pump – 2 sets
  • Collets 3 nos.
  • Mounting Pad 4 nos.
  • Tool Kit
  • User Manual

Optional

  • Rotary Axis,
  • Servo Motors & Digital Drives
  • Ground Ball Screws

Application

Manufacturing of small dies and moulds, punches, electrodes for spark erosion, printing-cutting, and embossing dies & tools, vacuum forming dies, solid  models, control panel plates, name plates, sign making, gift articles,  mementos, engraving for rubber stereos, light milling work, etc.

]]> Videos https://test2.arsun.com/videos/ Sat, 10 Aug 2019 06:49:38 +0000 http://arsun.com/wordpress/?p=382 Welcome to ARSUN https://test2.arsun.com/welcome-to-arsun/ Wed, 07 Aug 2019 09:37:01 +0000 http://arsun.com/wordpress/?p=67 ARSUN is a trusted name in the manufacturing industry from the years. We deliver heavy-duty products with rigidity and precision

]]> Universal Radial Drill UR 50 https://test2.arsun.com/universal-radial-drill-ur-50/ Sun, 07 Jul 2019 10:38:12 +0000 http://arsun.com/wordpress/?p=164

ARSUN UR Series of Portable Radial Drill with Universal Drill Head is most suitable for drilling operations on heavy and sizable components that require quick and efficient preparations in terms of capacity as well as accuracy.


Universal Radial Drill UR 50

Model UR 50 – Column Traverse Type

UR 50 is a column traverse type model in which its column traverses along the bed.

Arm up/down, arm traverse, 360º head rotation, drill-head swiveling (90º up/down), column traverse along the bed, sleeve lock/unlock – all movements are motorized, which offers fatigue-free easy location while drilling.

It has a wide range of 15-speeds and 6-power feeds makes the machine suitable for drilling, tapping and reaming operations within its full working range and various positions of arm and drill head.




Technical Specification

Capacity
Drilling capacity in Steel mm 50
Drilling capacity in Grey Cast Iron mm 65
Tapping capacity in Steel   M48
Drilling Spindle
Drilling head swivel   360º
Angle of arm rotation   360º
Angle of drill head swivel from horizontal upwards & downwards   90º
Taper in spindle   MT5
Max. Spindle travel mm 350
Nos. of Spindle speeds nos. 15
Spindle speeds range rpm 16 ~ 800
Nos. Power feeds nos. 6
Power feeds range mm/rev 0.05 ~ 0.5
Working Range
Max. vertical displacement of arm mm 1250
Max. horizontal movement of arm mm 900
Max/Min Spindle reach – Distance of spindle axis from column face with the spindle in a vertical position – max/min mm 2070/1170
Drilling radius with spindle in vertical position – Max/Min mm 2270/1370
Max/Min distance from spindle nose to floor level mm 1555/305
Column travel along bed mm 1200
Electric Data
Main electric motor kw 3.7
Total electric power required kw 10
Size & Weight
Overall size of clamping bed mm 2630 x 1050 x 260
Max. working dimensions of the machine- l x b x h mm 5740 x 4540 x 3400
Machine weight (approx) kg 6800

View Model – UR 30     Download Catalog – UR 50


Salient Features

  • Robust & rigid machine with easy operation.
  • Powerful : 50mm drilling in steel at any angular direction.
  • Easily transportable : capable of moving easily.
  • The drill-head rotates 360º and swivels 90º up & 90º down.
  • Wide range of 15-speeds and 6-power feeds for drilling, tapping and reaming operations.
  • Arm up/down, arm traverse, head tilting, head swiveling, column traverse along bed, sleeve lock/unlock – all movements are motorized with easy pendent control.
  • Well adequately ribbed bed, saddle, inner column, arms and drill-head offer maximum rigidity and minimum deflection.
  • Ideally suitable for large & stationary jobs, for drilling hard to reach places and on-site drilling.

Application

This machine finds application for drilling, reaming, and tapping operations on components of large machine tools and forming machines, turbines, generators, compressors, different kinds of steel constructions, boilers, containers, chemical equipment, furnaces of cement plants, shipbuilding, etc.

Working of Universal Radial Drill

]]> Universal Radial Drill UR 30 https://test2.arsun.com/universal-radial-drill-ur-30/ Sun, 07 Jul 2019 10:37:28 +0000 http://arsun.com/wordpress/?p=161

ARSUN UR Series of Portable Radial Drill with Universal Drill Head is most suitable for drilling operations on heavy and sizable components which require quick and efficient preparations in terms of capacity as well as accuracy.

Portable Radial Drill with Universal Drill Head

Model UR 30 – Fixed Column Type

UR 30 is a fixed column type model in which column is bolted with base and has no traverse movement.

Its all movements are motorized like arm up/down, arm traverse, drill head swiveling (90º up/down), drill head 360º rotation, etc., which offer fatigue free easy location while drilling. Only sleeve locking/unlocking is manual.

It has wide range of 8-speeds and 5-power feeds makes the machine suitable for drilling, tapping, reaming operations within its full working range and various positions of arm and drill head.

Technical Specification

Capacity
Drilling capacity in Steel mm 30
Drilling capacity in Grey Cast Iron mm 35
Tapping capacity in Steel   M25
Drilling Spindle
Drilling head swivel   360º
Angle of arm rotation   360º
Angle of drill head swivel from horizontal upwards & downwards   90º
Taper in spindle (spindle nose taper)   MT4
Maximum spindle travel   mm 200
Number of spindle speeds nos. 8
Spindle speeds range rpm 53 ~ 900
Number of power feeds nos. 5
Power feed range mm/rev 0.05 – 0.1 – 0.15 – 0.2 – 0.25
Optional-I mm/rev 0.08 – 0.16 – 0.25 – 0.32 – 0.4
Optional-II mm/rev 0.1 – 0.2 – 0.3 – 0.4 – 0.5
Working Range
Maximum vertical displacement of arm mm 1000
Maximum horizontal movement of arm mm 700
Spindle Reach – Distance of spindle axis from column face with spindle in vertical position – max/min mm 1555 / 855
Drilling radius with spindle in vertical position – max/min mm 1680 / 980
Max/Min distance from spindle nose to floor level – when spindle in vertical position mm 1130 /230
Max/Min distance from spindle center to floor level – when  spindle in horizontal position mm 2100 / 270
Overall size of base – L x W x H mm 1250 x 1000 x 200
Electric Data
Main electric motor kw 1.5
Total electric power required kw 6.15
Size & Weight
Overall size of machine – l x b x h mm 2600 x 1300 x 2450
Packing case size – l x b x h mm 2700 x 1400 x 2600
Machine Weight (approx) kg 2500
View Model – UR 50     Download Catalog – UR 30

Salient Features

  • Heavy duty – 30mm drilling in steel at any angular direction.
  • The drill-head rotates 360º and swivels 90º up & 90º down.
  • Wide range of 8-speeds and 5-power feeds for drilling, tapping and reaming operations.
  • While depth drilling, auto feed disengages at preset depth and at too high drilling pressure.
  • Arm up/down, arm traverse, head tilting, 360° head rotation etc. movements are motorized with easy pendent control.
  • Well adequately ribbed base, saddle, inner column, arms, skew bracket and drill-head offer maximum rigidity and minimum deflection.

Application

This machine finds application for drilling, reaming, and tapping operations on components of large machine tools and forming machines, turbines, generators, compressors, different kind of steel constructions, boilers, containers, chemical equipment, furnaces of cement plants, ship- building etc.

Working of Universal Radial Drill


]]> Radial Drill AR 50 https://test2.arsun.com/radial-drill-ar-50/ Sun, 07 Jul 2019 10:36:38 +0000 http://arsun.com/wordpress/?p=158

ARSUN AR Series of Radial Drills offer rigidity, precision, and easiness in operation and are suitable for drilling, reaming and thread cutting operations

Radial Drill Machine - AR 50

Salient Features

  • Heavy Duty – 50 mm drilling in steel.
  • Wide range of 8 spindle speeds for drilling, tapping, reaming and boring operations.
  • Six power feeds: 0.05 to 0.3 mm per revolution.
  • Auto feed disengages at preset depth as well at too high drilling pressure.
  • Hardened and ground alloy steel gears fitted on spline shafts in main drive gearbox runs in an oil bath.
  • Hardened and precision ground spindle sleeve.
  • Double column construction for rigidity and effortless centering.
  • Arm and drill-head guide ways are precisely ground for minimum play and rigid clamping of drill-head with the arm.
  • Well adequately ribbed base-plate, inner column & arm for maximum rigidity and minimum deflection.
  • Testing Standard: As per IS: 2199.

Technical Specification

Capacity
Maximum drilling dia. in steel /td>

 mm 50
Maximum drilling in cast iron mm 60
Maximum thread cutting in steel M 36
Maximum boring in steel mm 100
Drilling spindle
Taper in spindle   MT4
Maximum spindle travel mm 300
Number of spindle speed   8
Spindle speed range rpm 45 – 1125
Number of feed rates   6
Feed rate range mm/rev 0.05 – 0.3
Working range
Column sleeve diameter   300
Spindle reach from column face – min / max mm 400 / 1250
Spindle nose to base – min / max mm 390 / 1190
Drilling head travel on arm mm 850
Arm vertical travel mm 800
Electric data
Power of spindle motor kw 2.2
Power of arm lifting motor kw 1.5
Dimensions & Weight
Overall dimensions of the machine – l x w x h mm
Weight of the machine kg 2100
Download Catalog – AR 50     View Model – AR 40

Standard Equipments

  • Spindle Motor & Arm Lifting Motor
  • Box Table – 600 x 450 x 450mm size
  • Reduction Socket Morse 4/3, 3/2, 2/1
  • Coolant Pump
  • Built-in coolant tank
  • Machine Lamp
  • Electrical suitable for 415 V / 50 Hz / 3 Phase AC supply
  • Operation & Maintenance Manual

Working of radial drill AR 40

]]> Radial Drill AR 40 https://test2.arsun.com/radial-drill-ar-40/ Sun, 07 Jul 2019 10:35:40 +0000 http://arsun.com/wordpress/?p=155

ARSUN AR Series of Radial Drills offer rigidity, precision, and easiness in operation and are suitable for drilling, reaming and thread cutting operations

Radial Drill Machine - AR 50

Salient Features

  • Heavy Duty – 50 mm drilling in steel.
  • Wide range of 8 spindle speeds for drilling, tapping, reaming and boring operations.
  • Six power feeds: 0.05 to 0.3 mm per revolution.
  • Auto feed disengages at preset depth as well at too high drilling pressure.
  • Hardened and ground alloy steel gears fitted on spline shafts in main drive gearbox runs in an oil bath.
  • Hardened and precision ground spindle sleeve.
  • Double column construction for rigidity and effortless centering.
  • Arm and drill-head guide ways are precisely ground for minimum play and rigid clamping of drill-head with the arm.
  • Well adequately ribbed base-plate, inner column & arm for maximum rigidity and minimum deflection.
  • Testing Standard: As per IS: 2199.

Technical Specification

Capacity
Maximum drilling dia. in steel /td>

 mm 50
Maximum drilling in cast iron mm 60
Maximum thread cutting in steel M 36
Maximum boring in steel mm 100
Drilling spindle
Taper in spindle   MT4
Maximum spindle travel mm 300
Number of spindle speed   8
Spindle speed range rpm 45 – 1125
Number of feed rates   6
Feed rate range mm/rev 0.05 – 0.3
Working range
Column sleeve diameter   300
Spindle reach from column face – min / max mm 400 / 1250
Spindle nose to base – min / max mm 390 / 1190
Drilling head travel on arm mm 850
Arm vertical travel mm 800
Electric data
Power of spindle motor kw 2.2
Power of arm lifting motor kw 1.5
Dimensions & Weight
Overall dimensions of the machine – l x w x h mm
Weight of the machine kg 2100
Download Catalog – AR 50     View Model – AR 40

Standard Equipments

  • Spindle Motor & Arm Lifting Motor
  • Box Table – 600 x 450 x 450mm size
  • Reduction Socket Morse 4/3, 3/2, 2/1
  • Coolant Pump
  • Built-in coolant tank
  • Machine Lamp
  • Electrical suitable for 415 V / 50 Hz / 3 Phase AC supply
  • Operation & Maintenance Manual

Working of radial drill AR 40

]]> ISH 35 https://test2.arsun.com/cnc-engraving-ish-35/ Sun, 07 Jul 2019 10:32:27 +0000 http://arsun.com/wordpress/?p=148

BED TYPE – MOVING TABLE – FIXED GANTRY’ construction, comprises of the well-ribbed base with integrated bed-ways, thick-walled rigidly built gantry and work-table – all these major parts are made of low vibration graded cast iron and the whole machine is mounted on heavy-duty steel fabrication for rigidity and stability.

ISH series of engraving machine comes with stepper motors & micro-stepping drives / ball-screws / LMGs / 24000 rpm water-cooled spindle motor, which all-to-gather with its sturdy construction offers vibration-free smooth movement of all axis while working.


CNC Engracing Machine- ISH 35

2D and 3D Engraving

Capable of 2D & 3D Engraving on most of material: i.e., C.I., M.S., Carbon Steel, Aluminum, Copper, Brass as well as Wood, Plywood, MDF, Fiber, Acrylic, Nylon and other plastics.

CNC Controller

  • Full featured PC-based 32bit CNC Controller.
  • The controller enables to use EMC2 standard G-Codes / M-codes for 3D operations.
  • Allows direct import of DXF, BMP, JPG & HPGL files through LazyCam.
  • Visual G-code display.




Technical Specification

Table
Table overall size mm 470 x 470
Nos. of T-slots / size / center distance mm 5 / 12 / 100
Table load capacity kg 100
Moving unit LM Guideways and Ball Screws (C7) on all axes
Working Range
X- axis travel mm 350
Y- axis travel mm 350
Z- axis travel mm 150
Axes feed rate (depends on material) mm/min 1 ~ 1500
Rapid traverse m/min 2.5
Spindle speed rpm 24000
Max dist bet spindle nose & table mm 160
Max job height mm 150
Electricals
Axes motors Stepper motors with micro stepping drives
Spindle motor 2.2 kw / 24000 rpm / 1Ph AC
Coolant pump – Water cooled 0.15 HP / 3 Ph AC
Power supply 230V / 50Hz / 1Ph AC
Machine weight kg 500 (approx)

Standard Accessories

  • PC based CNC Controller (without PC)
  • Machine Lamp
  • Coolant Pump
  • Collets 5 nos.
  • Mounting Pad 4 nos.
  • Tool Kit
  • User Manual

Optional

  • Rotary Axis,
  • Servo Motors & Digital Drives
  • Ground Ball Screws

Application

Manufacturing of dies, moulds, punches, electrodes for spark erosion, printing-cutting, and embossing dies & tools, vacuum forming dies, solid  models, control panel plates, name plates, sign making, gift articles,  mementos, engraving for rubber stereos, light milling work, etc.


]]> CNC Engraving – ADI https://test2.arsun.com/cnc-engraving-adi/ Sun, 07 Jul 2019 10:30:43 +0000 http://arsun.com/wordpress/?p=145

This ‘TRAVELLING GANTRY-FIXED TABLE’ machine is having more weight carrying capacity with a small footprint. Its major parts – table, gantry, and slide are made of graded cast iron, which offers rigidity and vibration-free movement of all axes.


2D & 3D Engraving

The machine is suitable for  wood, MDF, fiber, acrylic, nylon & other plastic material, soft metals i.e. aluminum, brass and copper, and for light engraving work on MS and SS material!

CNC Controller

  • Full featured PC-CNC Controller.
  • The controller enables to use EMC2 standard G-Codes / M-codes for 3D operations.
  • Allows direct import of DXF, BMP, JPG & HPGL files (through LazyCam).
  • Visual G-code display.

Technical Specification

Table
Table overall size mm 530 x 500
Nos. of T-slots / size / center distance mm 5 / 10 / 110
Table load capacity kg 80
Moving unit   LMGs and Ball Screws (C7)
Working Range
X – axis travel mm 370
Y – axis travel mm 370
Z – axis travel mm 100
Axes feed rate mm/min 1 ~ 1500 (depends on material)
Rapid traverse mm/min 1500
Spindle speed rpm 25000
Maximum height of the job
accommodated on table 		mm 100
Electricals
Axes motors   Stepper motors with micro
stepping drives
Spindle motor – Air cooled – German spindle motor   800 w / 5000 ~ 25000 rpm / 1Ph AC
Power supply   230 V / 50 Hz / 1Ph AC
Tools   End Mills & Engraving
Cutters
Tool size mm Ø8 max

Hardware and Software Requirements

  • Desktop PC with Parallel Port
  • 32bit version of Windows 2000/XP/VISTA/7
  • 1GHz CPU
  • 512MB RAM (minimum)

Working of CNC Engraving

]]> CNC Wood Router https://test2.arsun.com/cnc-wood-router/ Sun, 07 Jul 2019 09:43:17 +0000 http://arsun.com/wordpress/?p=79
